Olympic Controls
400 West Georgia, Vancouver

Vancouver, British Columbia

400 West Georgia.

An interoperable building-controls ecosystem pairing Johnson Controls Facility Explorer supervision with Schneider Electric SpaceLogic room control.

Explore the installation
30
documented levels · P5 to L25
347,392
sq. ft. total GLA
340,846
sq. ft. office GLA
6,546
sq. ft. retail GLA
3
connected technology layers

Hybrid controls architecture

One operator experience. Multiple connected systems.

Facility Explorer connects the central plant and equipment-control layer to room-level comfort systems. Schneider Electric SE8350 controllers serve fan coils and ERVs, with wireless Zigbee segments integrated through MPM gateways. Somfy blinds and shades are also brought into the building-controls view for coordinated status monitoring.

  • FX Server
  • FX80
  • FX-PCG
  • FX-PCX
  • CGM09090
  • SE8350
  • Zigbee gateways
  • Somfy blinds & shades
  1. Operations01

    FX Server

    Graphics · alarms · schedules · histories

  2. Supervision02

    FX80

    BACnet network and system integration

  3. JCI field control03

    FX-PCG · FX-PCX

    Plant and HVAC equipment sequences

  4. Schneider room control04

    SpaceLogic SE8350

    Fan coils · ERVs · comfort sensing

  5. Shading integration05

    Somfy blinds & shades

    Status monitoring through the base-building controls interface

Installed product showcase

Controls from plant to occupant.

Product families identified across the base-building and tenant control packages.

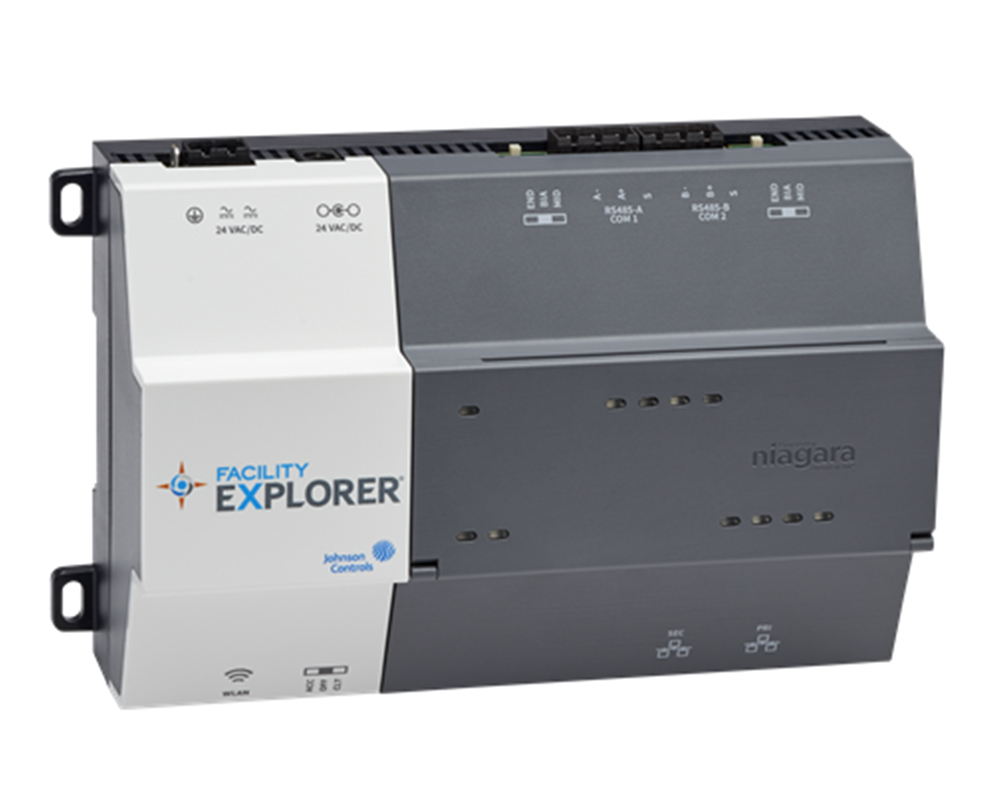

Johnson Controls FX Server + FX80

Johnson Controls

FX Server + FX80

Enterprise and supervisory control

Facility Explorer provides the operator experience, system graphics, alarm management, scheduling and integration across the building automation network.

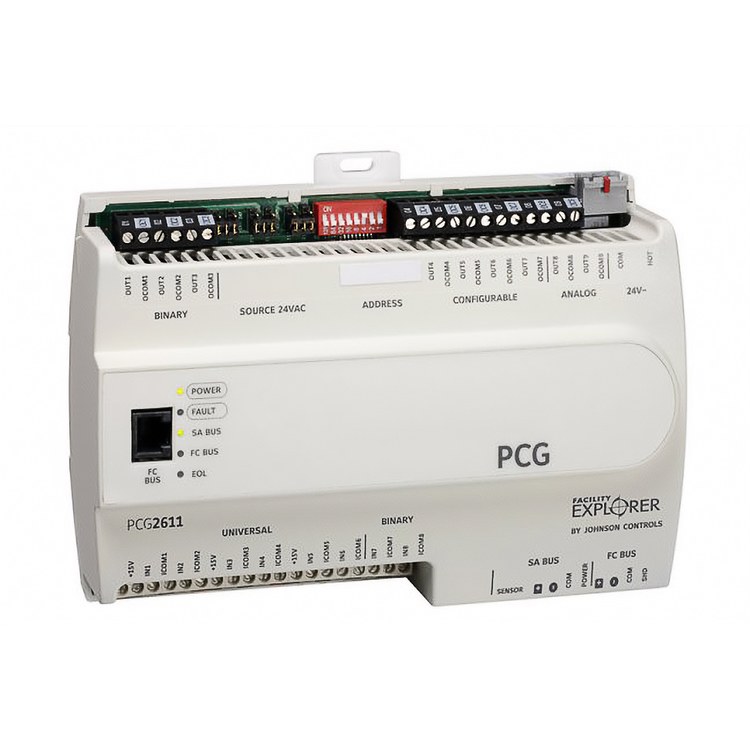

Johnson Controls FX-PCG / FX-PCX

Johnson Controls

FX-PCG / FX-PCX

Plant and equipment controllers

Programmable controllers serve central plant, fan-coil, ERV and auxiliary HVAC sequences over the BACnet field network.

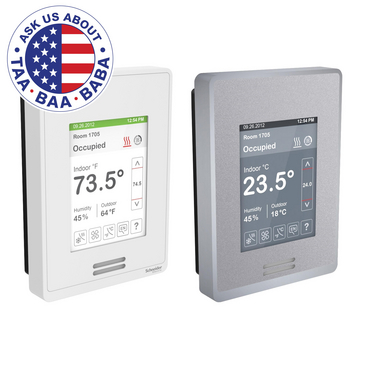

Schneider Electric SpaceLogic SE8350

Schneider Electric

SpaceLogic SE8350

Room and ERV control

Application-specific room controllers combine local occupancy comfort, humidity sensing, fan-coil control and ERV coordination.

Schneider Electric Zigbee coordination

Schneider Electric

Zigbee coordination

Wireless room-control backbone

MPM gateways coordinate wireless SE8350 room controllers across office floors while preserving BACnet connectivity to the supervisory layer.

Integrated capabilities

Central systems

Chillers, pumps, fan coils, ERVs and ancillary systems coordinated through programmable control.

Tenant comfort

Room-level temperature, humidity, occupancy and ventilation control across office fit-outs.

Somfy shading

Blinds and shades integration adds base-building status visibility alongside HVAC and room controls.

Open integration

BACnet supervisory and field networks bridge equipment controllers, room devices and operator graphics.
